Description

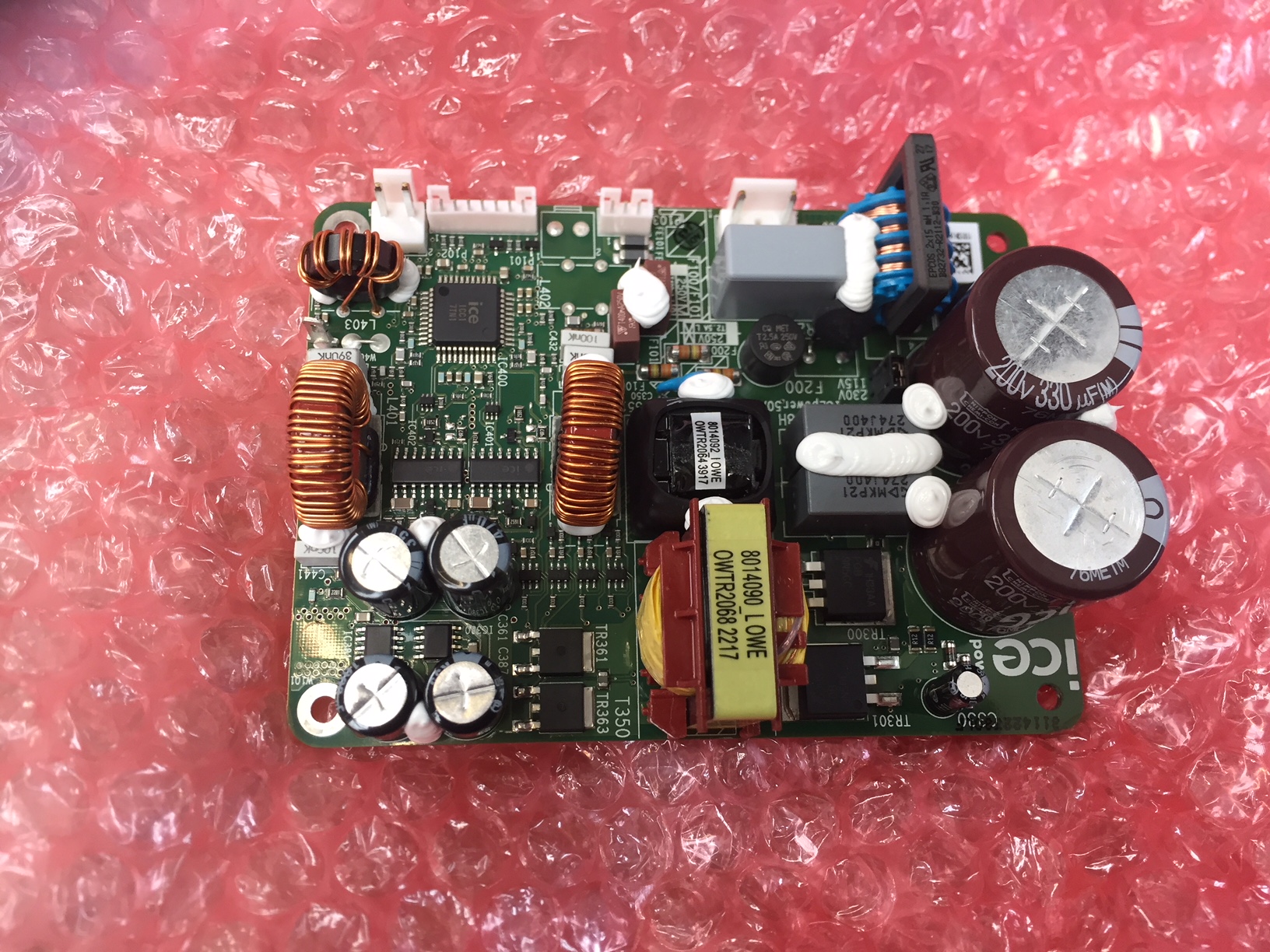

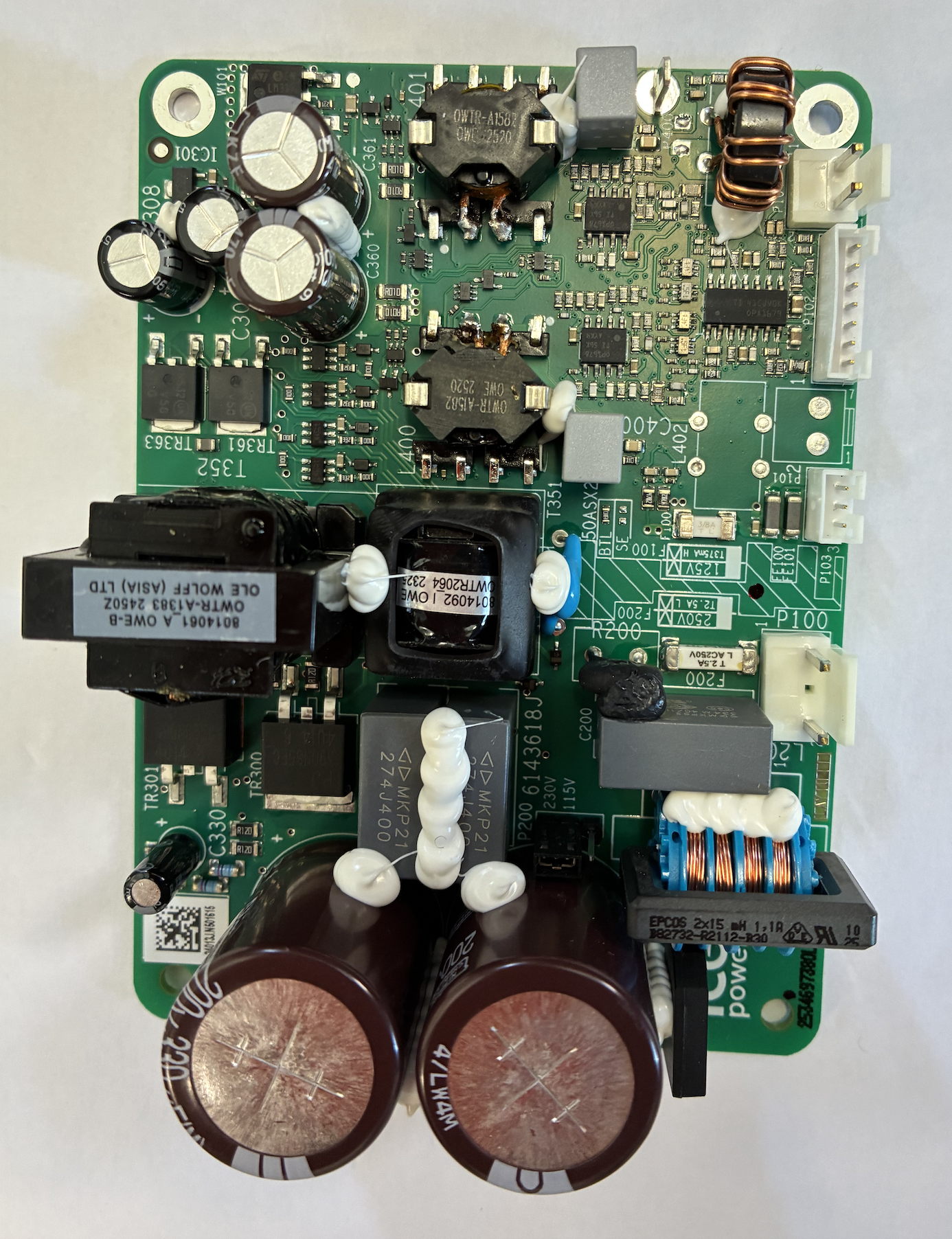

Genuine IcePower 50ASX2.  BTL Latest Updated  Board Layout
ICEpower50ASX2-BTL 170W Class D Amp with Resonant Gearbox Power Supply

Used on Fender Rumble 200 / Gallien Kruger MB200 Amplifier in Bridged mode.  Also used in Traynor SB200 as power output stage.



Preset up on board for 230V UK with 2.5A fuse

Key Performance Parameters

170W @ 1% THD+N, 20Hz – 20kHz, 4, BTL
•2 x 47W @ 1% THD+N, 20Hz – 20kHz, 4, SE (both channels driven)
•88W (2) + 22W (8) @ 1% THD+N, 20Hz – 20kHz, SE (both channels driven with asymmetric load)
•Max output voltage / current: 20Vp /12 Ap, 4, SE
•Max output voltage / current: 37Vp /12 Ap, 4, BTL
•122dBA dynamic range (BTL-version)
•117dBA dynamic range (SE-version)
•THD+N = 0.0015% @ 1W (8, 1kHz, SE)
•THD+N = 0.0015% @ 1W (8, 1kHz, BTL)
•81 % total efficiency @ 170W, 4
•25V unregulated auxiliary power supply
•Selectable Mains 85-132VAC & 170-264VAC
Key Features
•Fully integrated audio power solution
•Stereo or mono output versions available
•Rugged construction
•Thermal protection
•Over current protection
•Suitable for CE approved designs
•EMI conforms to: EN55013 EN55020 EN61000-3-2 EN61000-3-3 FCC part 15-B
•Safety conforms to: IEC/UL 62368 -1

PLEASE NOTE

Parts are to be fitted by QUALIFIED TECHNICIANS only

There may be Hazardous voltages present and all relevant safety precautions

MUST be observed when handling and fitting



Parts are non-refundable and cannot be exchanged when fitted by third party

Your statutory rights are not affected
