Description

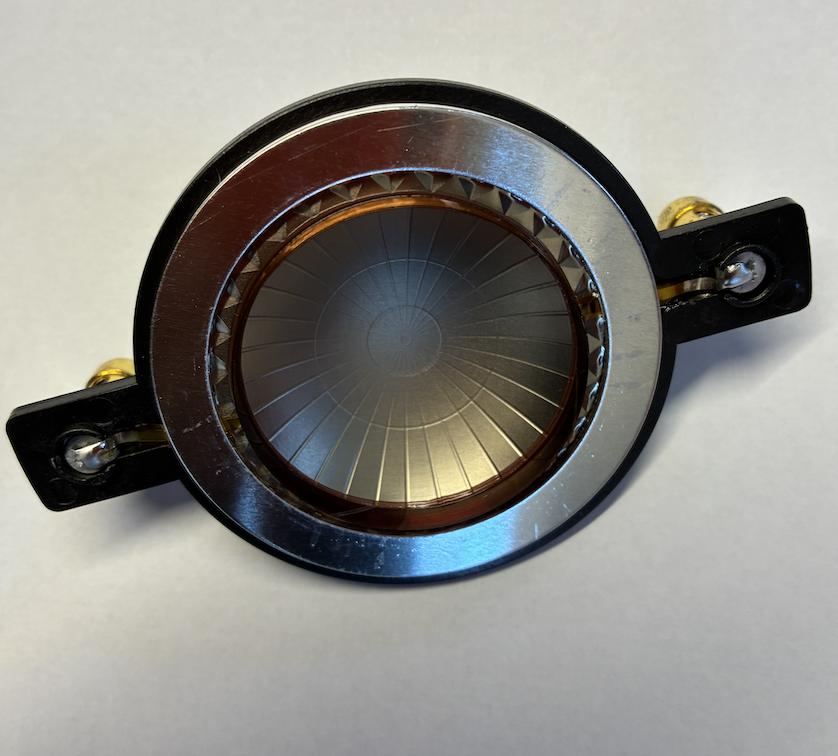

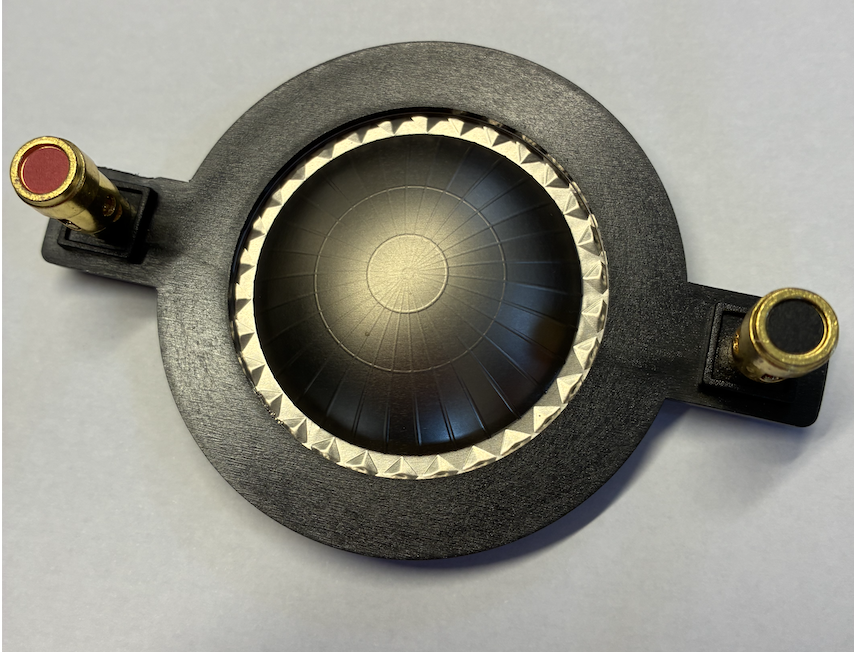

Aftermarket diaphragm to replace 8 ohm voice coil diaphragm BM-D440 BM-D450
Model Number 13730
VC Diameter 44.4 mm
VC Bobbin Material KSV/NSV/ASV/TIL
VC Wire CCAR/CCAW/ALR/SV

Diaphragm Material Titanium
Tracery on Diaphragm Edge Small Rhombus
Diaphragm Out Diameter 61 mm
Diaphragm Height 6.0 mm
Diaphragm Thickness 0.03 mm
RDC 6.5Ω
Fit Wash Size Φ65.8
Replacement for D450/440

Fits BM-D440, BM-D440S, BM-D450 and BM-D450S not MK2

American Audio BMD450 B-52 MX-1515, B52 MX-1515, B-52 MX1515, B52 MX1515
Behringer 44P60A8
Cerwin Vega Pro Stax PSX153, PSX253
DAP PSR-15A
EAW VR51 (EAW DC10/1703-8)
Mackie DC10/1701-8, DC10/1801-8, Mackie SRM 450, Mackie C300Z, S215, S225, SA1521, SR1521Z, SR1522Z
Mackie P/N 0008093, 0025666 Driver – Mackie 0025726
Mr. DJ PRO8000,
Gemini GX400, GX450,
P-Audio BM-D440, BM-D450, BM10 CXA, BM12 CXA, BM12 CXHA, BM15 CXA, BM15 CXHA, SD-44BF
Peavey 175T, PRO 12 (8 or 4 Ohm cabinets), PRO 15 (8 or 4 Ohm cabinets)
Turbosound RD111, CD111, TXD121, TXD12M, TXD151
Warrior Audio Prolight 400
